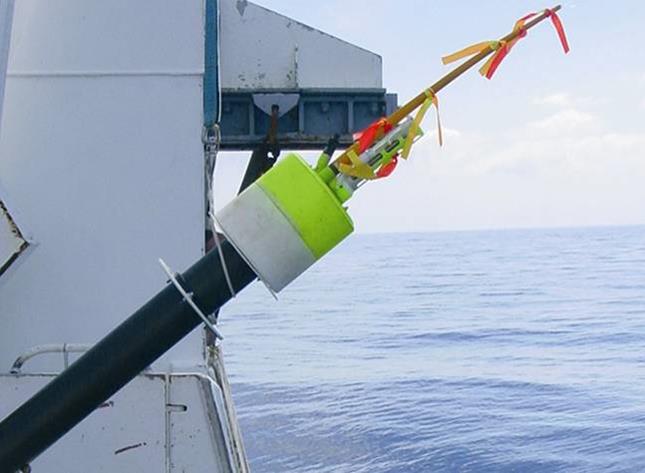

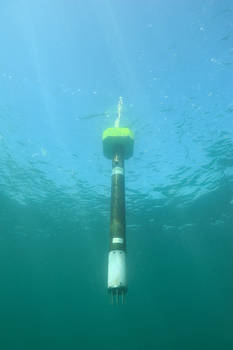

ARVOR L

ARVOR L provides salinity, temperature and pressure profiles up to 2000 meters depth. Data and positioning are achieved  ARGOS  satellites.  Mission with two depth values alternated and grounding avoidance function are settable by user before mission. With self-ballast and very light design, ARVOR L can be deployed by one person. It capitalises on both the know-how of Ifremer in floats activities and designing qualified  subassemblies and of nke on industrial product development.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Profileurs-final/UK/ARVOR_L_UK1.pdf

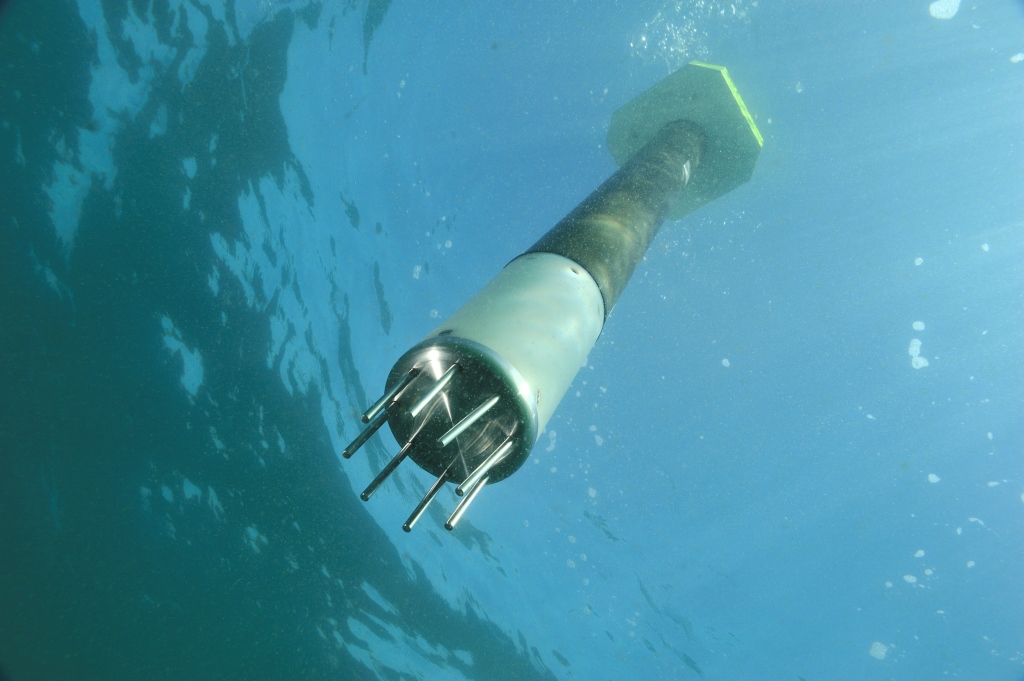

PROVOR CTS 3

PROVOR CTS3 is a reliable, cost-effective float with self-ballast that collects typically 112 data triplets (salinity, temperature and pressure) during its drifting and ascending phases. Once at the surface, these data are sent via the ARGOS system. The PROVOR CTS3 is designed to achive up to 250 cycles. More than 700 units have been produced since 1998. PROVOR CTS3 can launched from any vessel at slow speed using only a rope and at high speed (20 knots checked) by using release kit and launching crate. The PROVOR  has been developed in industrial partnership with Ifremer.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Profileurs-final/UK/PROVOR_CTS3_UK3.pdf

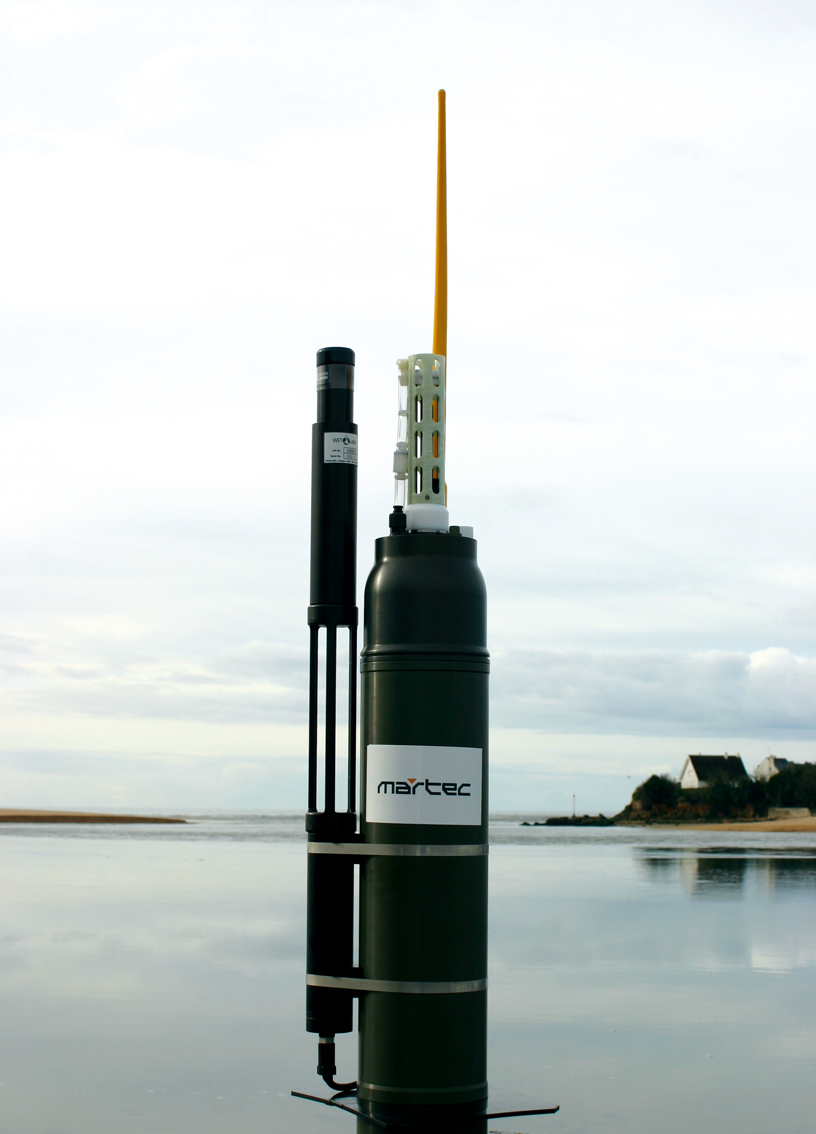

PROVOR CTS3 DO / DO I

PROVOR CTS3 DO and DO I are efficient and reliable autonomous profiling floats designed to acquire CTD  and Dissolved oxygen profiles: from 2000 m to the surface. Once at the surface, data are sent via satellite and a new cycle begins. The PROVOR DO is proposed with transmission by ARGOS or IRIDIUM. ARGOS is  one way data collection and positioning by satellites, IRIDIUM associated with GPS  is a two ways communication system enabling  data collection, the positioning  and remote control facilities. The PROVOR is a  cost-effective float with hydraulic feature enabling a deployment anywhere in the ocean without preballasting: this enables  to simplify deployments.

It has been developed in industrial partnership with Ifremer.

• PROVOR CTS3 DO: ARGOS transmission

• PROVOR CTS3 DO I: IRIDIUM and GPS

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Profileurs-final/UK/PROVOR_CTS3_DO_DO_I_UK1.pdf

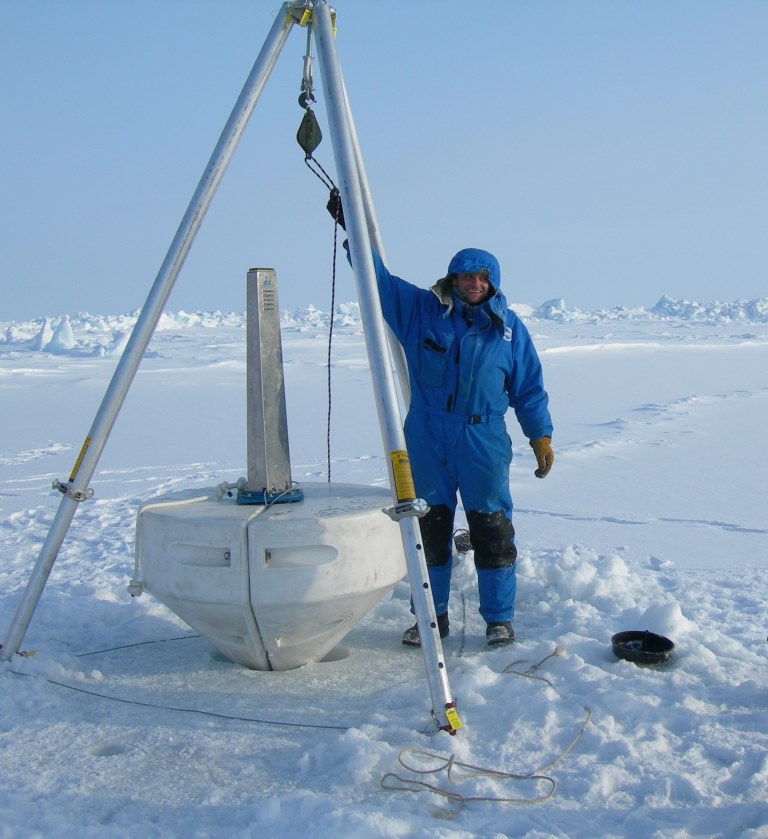

PROVOR SPI

PROVOR SPI is designed to operate under ice. It slides along a tighted cable hanged under an Ice Tether Platform (ITP). The base of the PROVOR SPI is the PROVOR CTS3 designed for the ARGO project. The firmware has been upgraded to optimize the diving mission. The ITP is an amphibious buoy which can operate as well on the ice than as floating offshore. The communication with buoy is achieved by means of an inductive link, communication with the buoy uses the bidirectional iridium communication system. The PROVOR SPI is divided in several easily transportable elements to enable transport by small aircrafts until deployment area.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Profileurs-final/UK/PROVOR_SPI_UK2.pdf

PAOLA

PAOLA is useful for naval forces in order to perform remote subsurface surveys in an operational area.  Thanks to the aero expendable capacity and the “NATO A” size, PAOLA can be deployed easily and quickly. PAOLA_PTA is an expendable oceanic profiler designed to acquire temperature profiles in the water column between 500m to surface with a half metric resolution and ambient noise at several depths. Due to its high level of performances, acoustic acquisition chain threshold is “0” sea state.

PAOLA PT is for Temperature and Pressure.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Profileurs-final/UK/PAOLA_UK1.pdf

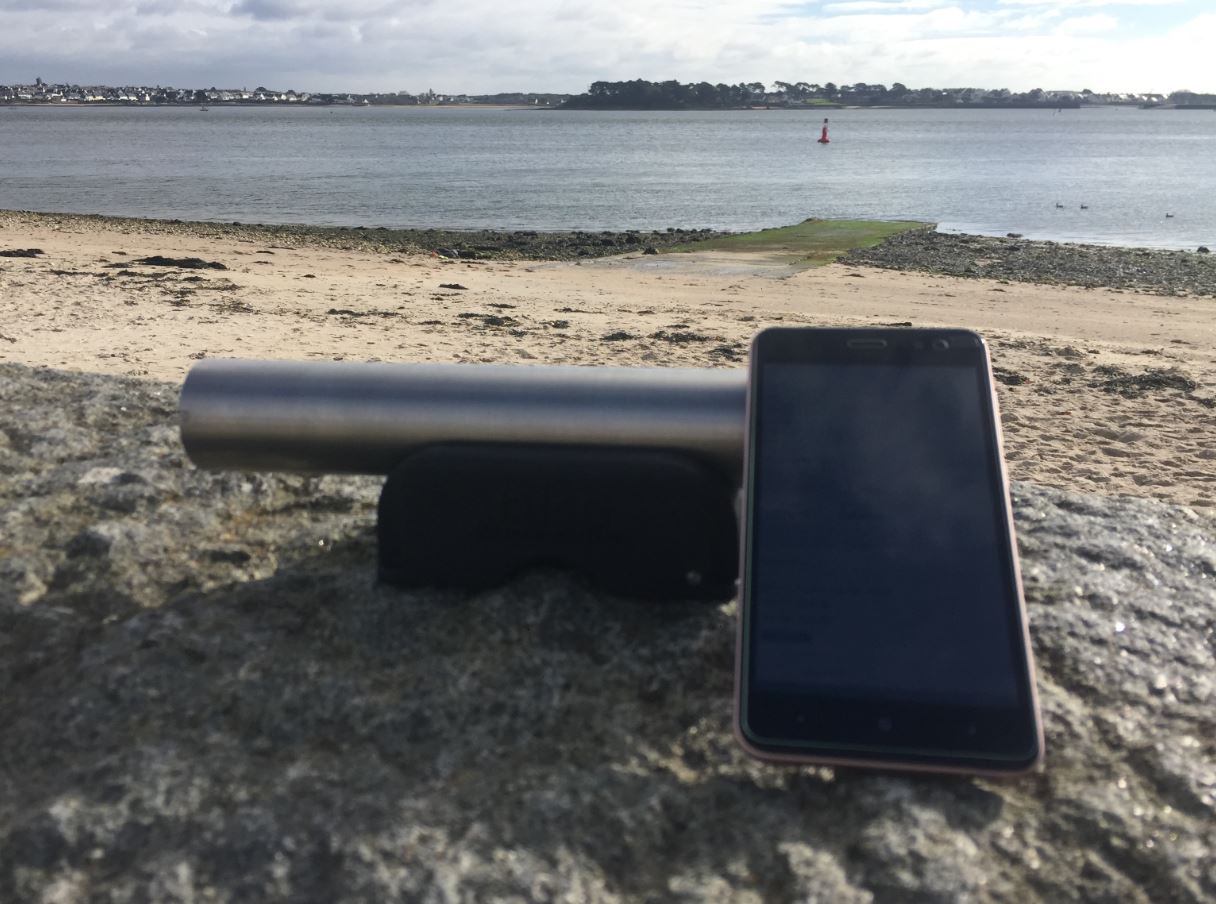

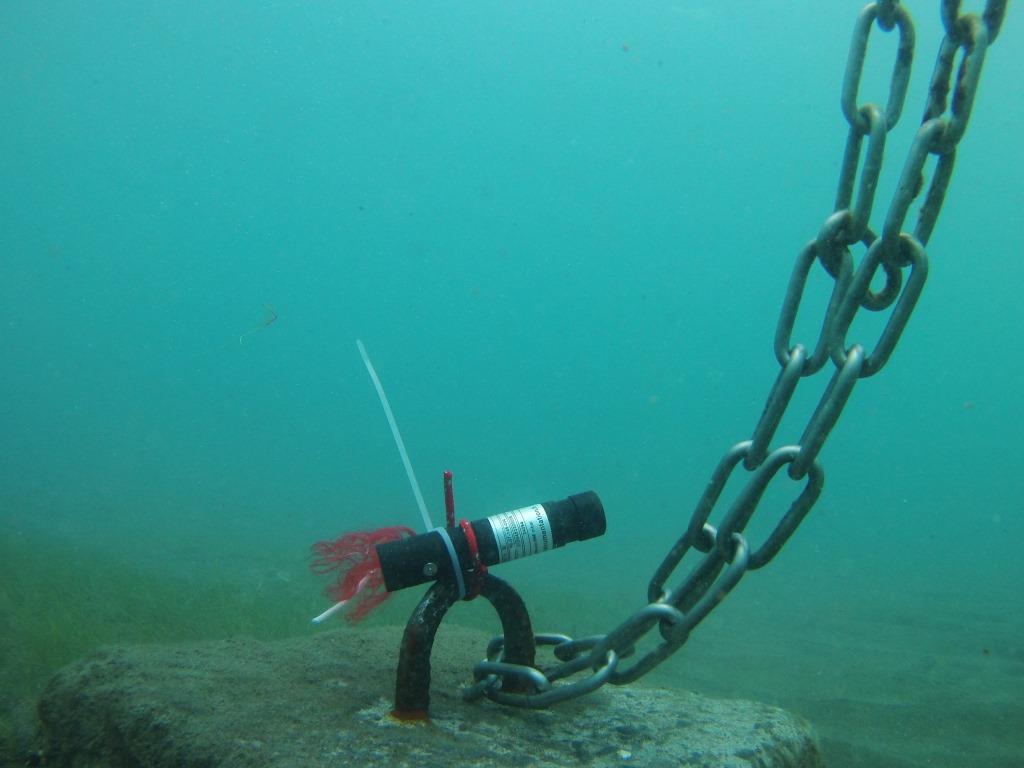

WiSens TD

WiSens TD measures and records temperature and pressure.
It has been designed to be used down to 6000m.

New generation :

• WiFi connection

• compatible IOS, Mac OS, Windows, Android

• No specific software

Easy to use:

• Fast wireless configuration configuration and data collection thanks to the WiFi communication

• Easy maintenance

Rugged and reliable:

• Optimal protection of the sensors

• Lithium batteries for long-term use (several years)

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/WiSens_TD_UK5.pdf

WISENS AD

WiSens AD measures and records deepwater accurate pressure and acceleration.  It has been designed to be used down to 6000m.

New WiSens range :

• WiFi connection

• compatible IOS, Mac OS, Windows, Android

• No specific software

Easy to use:

• Fast wireless configuration configuration and data collection thanks to the WiFi communication

• Easy maintenance

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/WiSens-AD_UK2.pdf

SDOT

SDOT enables data acquisition and recording of dissolved oxygen concentration and saturation measurements and temperature measurements.
SDOT uses an Anderaa dissolved oxygen sensor.

Several versions of the SDOT are available, depending on sensor and depth rating, for use in coastal areas or deep waters (6000m)

Easy to use:

• Light and compact

• Remote setup and fast wireless data transfer with a Data Pencil and a computer (Winmemo software)

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/SDOT_UK4.pdf

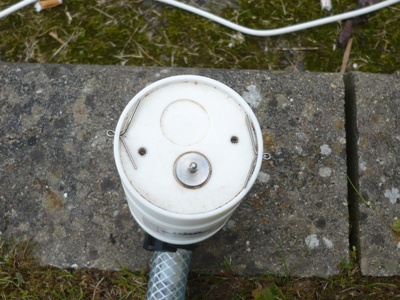

SP2TD10A

Autonomous water height data logger with Atmospheric pressure compensation.

Memory autonomy : > 6 days (with 1min sampling rate of depth), > 12 days (with 1min sampling
rate of depth and temperature)
Energy autonomy : > 4 years (Lithium batteries)
Option : Doubled memory capacity (64kb).
Pressure differential : 10m of water (1 bar)
Measurement accuracy : +/-3 cm for a 10m measurement range
Resolution : 4mm
Temperature measurement range : -5 to +45°C
Maximum resolution : 0.015 °C
Accuracy : +/-0.1°C from 0 to +30°C
Temperature drift : < 0.4cm /°c Internal clock with calendar Clock accuracy : 60 seconds/month Operating temperature : -10°C to +50 °C Communication : electromagnetic transmission without connector, using a reading interface (Data Pencil) connected to a PC serial link. Housing material : Plastic Housing length : 124mm Housing diameter : 60mm (65mm overall) Housing weight in air : 0.5 kg approx. Capillary length : 10m +/- 3mm

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/SP2T_D10A_UK1.pdf

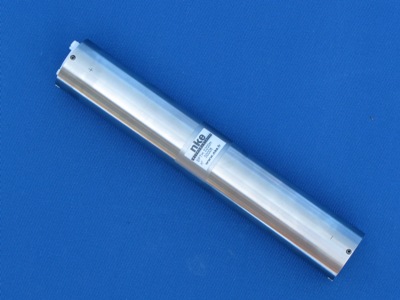

SPTH6000

6000m acceleration pressure data logger.

The data loggers with date-stamped memory from the SPTH family allow the measurement of pressure down to 6000 metres with a maximum resolution of 26cm and acceleration along the axis of the housing in the range ±2g.

Housing:

• Body made of Titanium and Ketron.

• Dimensions: diameter: 40mm, length: 235mm.

Energy:

• Lithium battery (factory replacement recommended):

• Autonomy: in excess of 3 years in recording mode with a measurement every 10 minutes

• In excess of 50 days with a 10-second measurement rate.

• 4 days with a measurement rate of 1 second or less.

Sampling rate:

• 100Hz maximum, which corresponds to a measurement rate of 10ms max.

DATASHEET:
http://www.nke-instrumentation.com/products/multiparameters-probes/pressure-temperature/spth6000.html

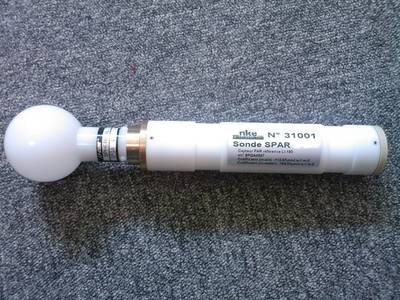

SPAR

SPAR enables to measure and record active radiation for photosynthesis in fresh and salt waters (radiation with wavelengths between 400nm and 700nm)
The amount of light energy received is expressed in µmol.m-2.s-1
Two versions of the SPAR are available:

• with a Flat LI-Cor sensor
• with a spherical LI-Cor sensor

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/SPAR_UK2.pdf

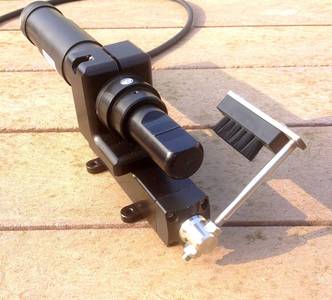

NOSS SENSOR

NOSS sensor is an unique underwater sensor for in situ refractive index measurement and capable to detect salinity anomalies of seawater. NOSS sensor has been designed for use even in harsh environments, down to 2000 meters.

Possible use

• Embedding on CTD probes, buoys, gliders, AUV, drifting profiling floats for operational oceanography
• Alternative solution to classical CTD

Advantages

• Fast sensor configuration (sampling, resolution) and data transfer using serial link.
• Optimize and compact design
• Optimal sensors protection for vibration and pressure resistance (NF X10-812 standard)
• Measured in real-time up to 3 Hz
• Not need calibration after deployment

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/NOSS_UK1.pdf

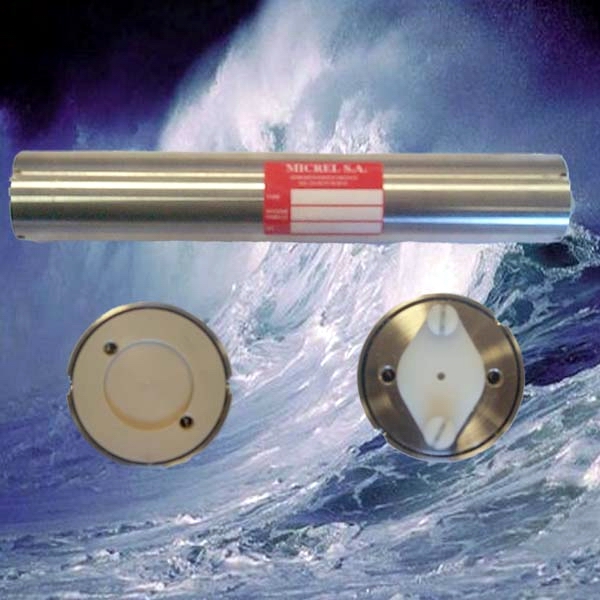

S2IP

S2IP measures and records the pressure and the tilt of immersed instruments such as the particle collectors or trawl panels.
The measurements of tilt are made along 2 perpendicular axes.
S2IP can have an autonomy in excess of one year depending on the settings and the sampling rate.

Tilt range : +/- 85°
Resolution : < 0.1° at 30° Accuracy : +/-0.3° at +20° and -20° Tilt sensor : Accelerometer +/-2g Pressure sensor : Piezoresistive (case and diaphragm made of hastelloy) Response time of sensors : 10 ms

300m Depth range (S2IP300) Accuracy : 0.9m, Resolution : < 0.15m 6000m Depth range (S2IP6000) Accuracy : 18m, Resolution : < 3m

Weight (in air) : 600g
Length : 235 mm
Diameter : 40 mm
Material : Titanium and ketron
Sampling rate : Programable from 0.05 s to 99 hrs
Programable starting : immediate, delayed, timed or set threshold (depth or tilt)
Memory capacity (*) : 1Mb (with data compression)
(*) the recording autonomy depends on the resolution and the sampling rate.

DATASHEET:
http://www.nke-instrumentation.com/products/multiparameter-probes/immersed-system-behaviour/s2ip.html

SPHT

SPHT enables to measure and record pH and temperature in deep waters.

SPHT is used with temperature and pH sensors specifically designed for use down to 6000m. These sensors are linked to the  SPHT by a connector.

Set-up and  data transmission can be performed by an inductive data interface (Data Pencil), and  a computer with the Winmemo software.

SPHT can be set-up and data can be read at 6000m with a Data Pencil 6000 used on a submarine, a ROV or an AUV.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/SPHT_UK2.pdf

RECOPESCA

The RECOPESCA system is designed to be installed on fishing boats. It was developed to analyse the fishing effort measurement.

Onboard the ship, the electronic system comprises:

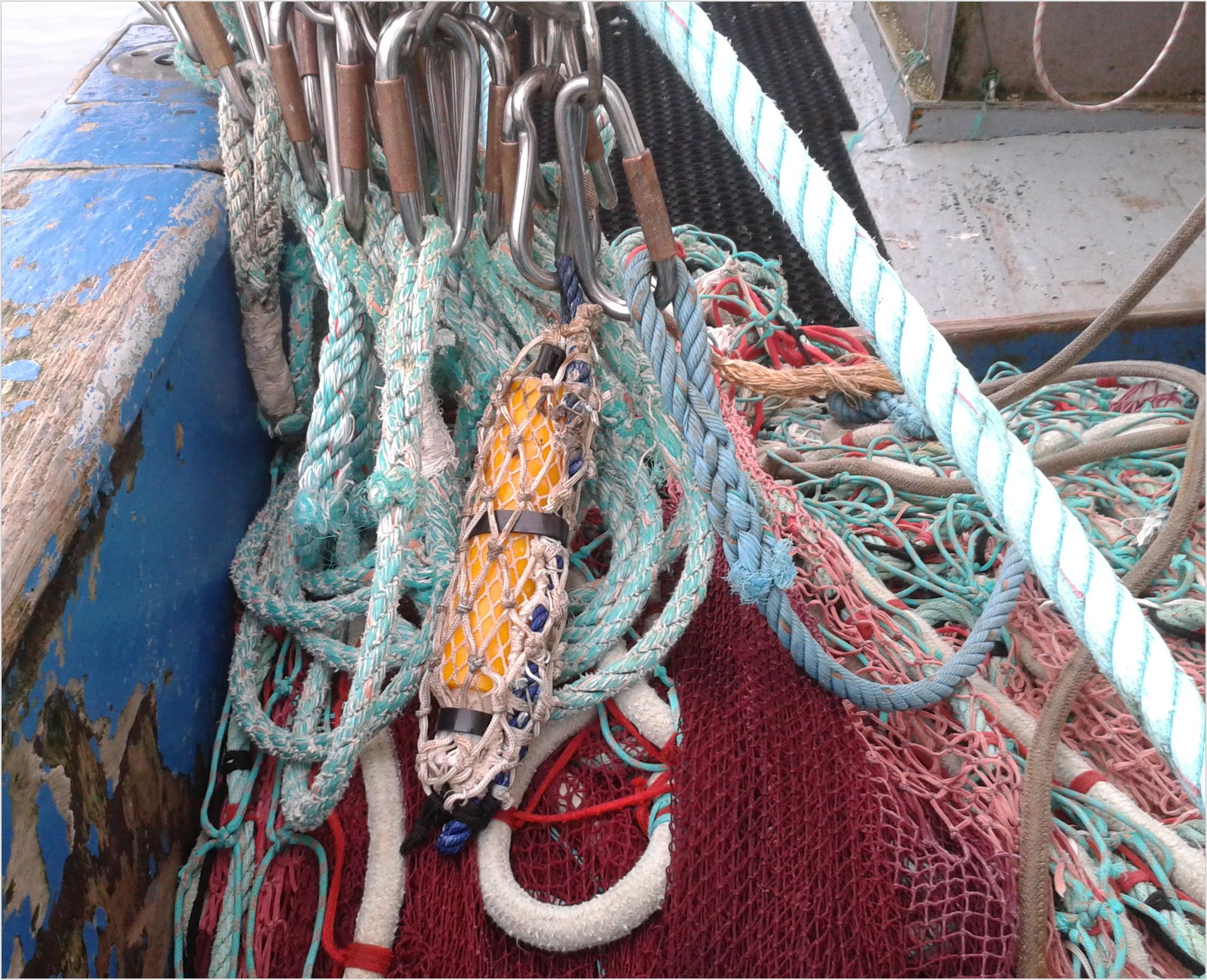

One or more SP2Ts: seawater temperature and pressure data logger; it is attached to the fishing device (trawl, fish pot, long line…) in order to measure the characteristics of water during fishing operations.

Environmental measurement of temperature,salinity and turbity as profiles.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/RECOPESCA_UK1.pdf

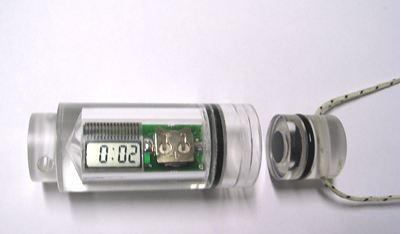

HOOK TIMER

The Hook Timers are mounted on long lines.
They allow to know exactly the elapsed time between the time the fish was caught and the time the line was hauled.
Il is thus possible to determine the optimal average time to drop and haul the long line.
The Hook Timers are attached between the main line and the hook.
The long line equipment is complemented with the SP2T600 depth and temperature data logger.

DATASHEET:
http://www.nke-instrumentation.com/fileadmin/produits/pdf/Enregistreurs-final/UK/HookTimer_UK1.pdf

McLane Moored Profiler – MMP

The McLane Moored Profiler (MMP) is an autonomous time-series instrument that profiles the water column by traveling along a fixed wire carrying an array of sensors. Depending on the sensors that are selected, in situ measurements can include conductivity, temperature, depth, cholorophyll-a and dissolved oxygen data. An optional underwater inductive modem provides real-time communication between the MMP and a surface buoy or seabed node. Profiling depth, time intervals and pressure stops are user-defined, and profiling patterns can span specific seasons or timeframes.

DATASHEET:
http://www.mclanelabs.com/sites/default/files/sub_page_files/McLane-MMP-Datasheet_0.pdf
